Brushless Cooler Motor Winding Machine , AC Ceiling Fan Armature Winding Machine

China Brushless Cooler Motor Winding Machine , AC Ceiling Fan Armature Winding Machine supplier
Brushless Cooler Motor Winding Machine , AC Ceiling Fan Armature Winding Machine supplier Brushless Cooler Motor Winding Machine , AC Ceiling Fan Armature Winding Machine supplier

Large Image :  Brushless Cooler Motor Winding Machine , AC Ceiling Fan Armature Winding Machine

Product Details:

Place of Origin: CHINA
Brand Name: WEDE
Model Number: WD-4-WCM

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: polyster film+ply-wooden case
Delivery Time: 30 days
Supply Ability: 10PCS/Month
Contact Now
Detailed Product Description
Application: Ceiling Fan Stator Stations No.: 4
Controller: PLC+HMI Indexing, Windng And Feeding: Servo Motor-MITSUBISHI
Tensioner: Electromagnetic Other Name: Manual Coil Winding Machine
High Light:

motor stator winding machine

,

ceiling fan armature winding machine

Ceiling fan production line WEDE is professional supplyiing in turnkey.



Ceing fan paper inserting machine, ceilng fan winding machine, ceiling fan wedge inserting machine, ceiling fan stator testing machine, ceiling fan varnish machine, ceiling fan shaft press



Furnce, Ceiling fan rotor die casting machine, runner press, ceilng fan turning lathe for cover and rotor, ceiling fan motor testing machine



Application of the stator coil winder machine



The Fully automatic stator coil winding machine is used to winding multi pole stator.It is Widely used in daily lives.



Machine function and characteristic of the stator coil winder machine



Automatic winding, indexing and wire cutting;

only load and unload stator by manually.

High efficiency, stable performance and reasonable price, help user reduce cost while remain high quality.



Press for the cover, blade



Ceiling fan motor winding machine is to make coils winding into stator.

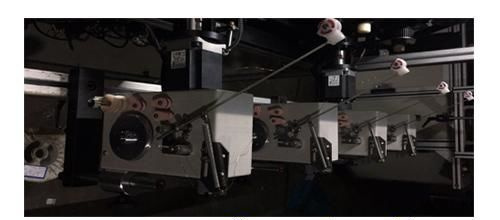

Stator winding machine has 4 stations and 2 controllers independently give the execution order for the 2/2 stations.



Each controller is working with 1 set servo motors which one is for stator indexing(slots transposition), one is for winding, the last one is for the wires arraying.





UPS in the coils winding machine WD-4-WCM is warmly welcome to the customers who are locating in the non-pre notice electricity break up area.



The program in the ceiling fan motor winding machine can set the starting turns no.speed, the ending turns no. speed and the most windings turns no.speed separately which achieves better windings shape;

Brushless Cooler Motor Winding Machine , AC Ceiling Fan Armature Winding Machine

the program can set single slot repair or resume winding after wire break which convenients for the production.

Brushless Cooler Motor Winding Machine , AC Ceiling Fan Armature Winding Machine



Electronic tensioner can makes the winding more tight to save the copper wires.

Brushless Cooler Motor Winding Machine , AC Ceiling Fan Armature Winding Machine





Stator OD Core length Slot No. Wire OD Turns No.
100-150mm 10-25mm 12-49 0.18-0.5 0-9999
RPM Weight Size
0-3000 300KGS 1025x1105x1780mm
