Multi Cutters Hydraulic Rotor Turning Machine PCB Control WD - 2 - BJC Model
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Control System: | PCB Control | Driving System: | Hydraulic |
|---|---|---|---|
| High Light: | commutator turning machine,turning lathe machine |
||

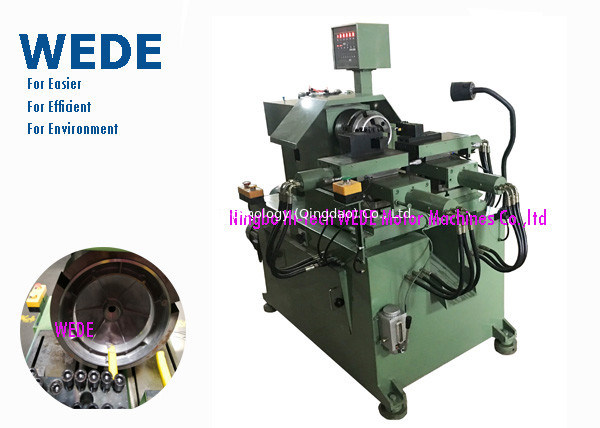

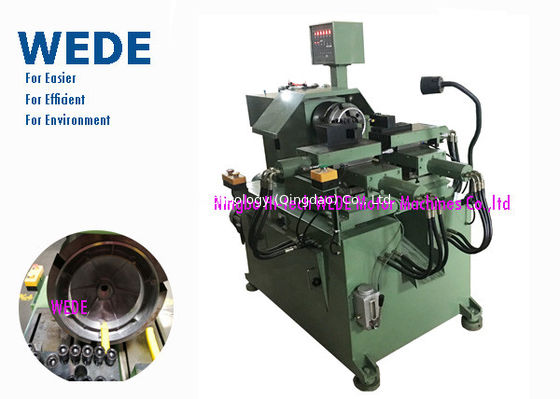

Multy cutters Hydraulic turning machine CPU controlled for ceiling fan rotor and cover
Traditional hydraulic rotor and cover turning machine WD-2-BJC enables to achieve low investment on the basis of reliable turning quality. Also the machine is programmable and easy operation. It is next to the ceiling fan rotor casting machine WD-1-ZL181 and WD-NP-50(63) runner cutting press, also can be named WD-1-ZL181(T).
Hydraulic lathe is designed to turn the ID, OD, side edge of the ceiling fan rotor, cover etc. Which is easily operation and maintenance.
| Model | 16A,B | 25A,B | 32A,B | 3A,B |
| Center height | 235mm | |||
| Rod diameter | 3-16mm | 3-25mm | 3-32mm | 3-43mm |
| Processing length | 50mm | 70mm | ||
| Main shaft speed | 1500/2800rpm | 1200-2200rpm | ||
| Main shaft motor | 1.5kw | 2.2kw | ||
| Oil pump motor | 0.75kw | |||
| Lathe weight | 1000kg | 1200kg | ||
| Radial runout | <=0.005mm | |||
| Repeat positioning precision | <=0.01mm | |||
| Un-roundness | <=0.01mm/100mm | |||
| Hydraulic working pressure | 2.0-2.3MPa | |||
| Pallet working speed | 0-100mm/s | |||
