Adjustable 3 Phase Motor Winding Machine , Self Lock Automatic Coil Winding Machine

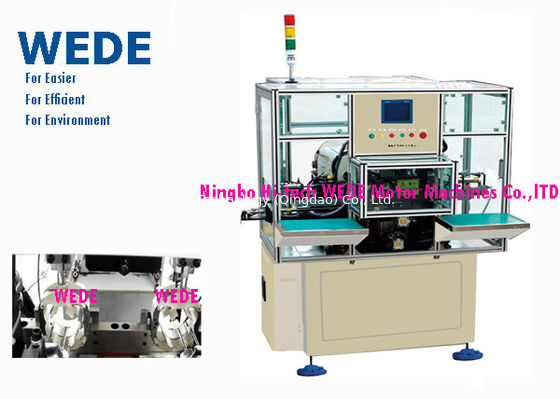

Large Image : Adjustable 3 Phase Motor Winding Machine , Self Lock Automatic Coil Winding Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	WEDE
Model Number:	WD-2A-XSW

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	polyster film+ply-wooden case
Delivery Time:	35 days
Payment Terms:	L/C, T/T
Supply Ability:	6PCS/Month

Contact Now

Detailed Product Description

Fixture Assembly:	Auto Self Lock	Stator For Winding Station:	Automatic
Winding Heads:	2	Other Name:	Automatic Coil Winding Machine
Feature:	Self - Locked	Keyword:	Stator Winding Machine
High Light:	automatic motor coil winding machine , induction motor winding machine

Full Automatic Stator Winding Machine with Two Working Station Two Poles ( Winder )

Quick Detail:

1. Model No.: WD-2A-XSW

2. This machine has two working station.

3. Easily to change the fixture for different types of stators.

4. It could adapt to different requirement of different stator models.

5. It can wind two stators at same time.

Description:

This Automatic stator winding machine could wind two stators at same time. Fixtures are in cycle operation automatically. No need to assemble fixture on the stator. It is benefit for the on-line operation

Function:

1. Cast iron or steel frame can absorb the shock. Accuracy is stable. The maximum winding speed is up to 450rpm (according to the wire diameter).

2. All the actions are fully automatic (including loading and unloading). The winding could be more stable and efficient.

3. The cutting part structure is in compact. Wire clamping and cutting is finished at the same time.

4. Easily to change the fixture for different types of stators.

5. Fixtures are in cycle operation automatically.It is benefit for the on-line operation.

6. Permanent magnet tensioning device enables the tension adjustment.

7. Travel and swing angle is adjusted within 150-220mm (mechanical adjustment) .It could adapt to different requirement of different stator models.

8. Two working stations

Parameter:

Stator O.D	50~90mm
Wire diameter	0.25~0.8mm
Stator stack length	20~45mmm(standard design);30~60mm(tailor design)
Speed range	0-500rpm
Rated cycle time	take wire OD0.32MM with 300 turns as an example, 52-55 second for 2 pcs
Stator I.D	30~50
Slot number	2 poles
Stroke	135-190mm adjustable
Air pressure	0.4~0.7MPa
Lubrication mode	Continuous lubrication oiling machine
Voltage	AC380V,50/60Hz, power 3.7KW
Weight	1800Kgs
Dimension	210015501830mm

Competitive advantages:

It can wind two stators at same time. Easily change the fixture for different types of stators.

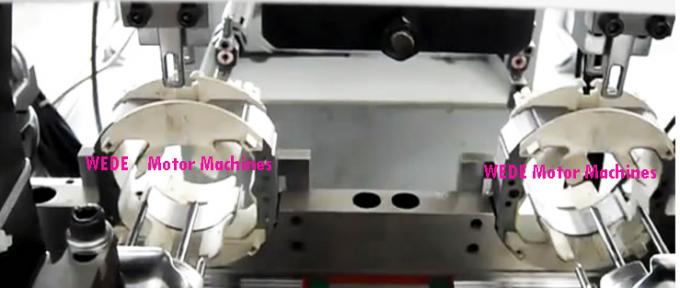

Stator photos before and after winding in the stator winding machine:

FAQ

1. How can I place an order?
Please provide the details of your requirements (what machine you need, and what products you need this machine to process--size drawings of your products, your required shift Qty of the machines etc) as clear as possible. So that we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
2. What kind of materials we need provide after the P.O. placed to you?
(1) the rotor, stator, coil’s relative size drawings.
(2) the rotor, stator samples, bobbin, wires, paper/wedge
3. What shipping documents we can have?
(1) commercial invoice
(2) packing list
(3) bill of lading
(4) certificate of origin (FTA etc)
(5) manual including diagrams
4. How about the warranty?
We have 1-year warranty and lifelong maintenance.
5. What is the terms of delivery?
We accept EXW, FOB, CFR, CIF, but it is subjected to the final PI (P.O.)which mutual party made.
