|Enamel Peeling Off Device:||For Option||Application:||With Core Assembly Device Can Process Core Coil|
|Function:||Wire Feeding, Straightening, Cutting, Winding, Ferrite Core Feeding, Gluing||Keyword:||Automatic Wire Winding Machine|
automatic stator winding machine,
power transformer winding machine
MCB coils winding machine WD-1V-MCW series
1) Tooling changeover time is less than 10 minutes;
2) It can insert the coil and wedge into stator slot automatically at a time;
3) Paper feeding, coil and wedge inserting are driven by servo motors;
4) Different parameters could be set in human-machine interface;
5) The speed and feeding mode is acquirable according to different slot filling rates and different kinds of wire;
6) Different sizes stator production can be done by changing tooling;
7) Especially apply to micro induction motor such as air conditioner motor, washing machine motor, compression motor, fan motor, generator and pump motor.
1. Z axis can enable customers to control the coils height
2. auto servo motor peeling device is option to be equipped, so that it can ensure stable clean enamel peeling off.
MCB coils winding machine WD-1V-MCW(320) can make single layer or multi-layers coils.
|Max stroke of wire feeding spindle||40|
|Reel direction||right and left hand|
|Min instruction value of winding spindle (Y)||0.1 degree|
|Max instruction value of winding spindle(Y)||+/-359.9 degree|
|Min set value of cam spindle(X)||0.1 degree|
|Max set value of cam spindle(X)||359.9 degree|
|Min set value of lifting spindle(Z)||0.01|
|Max set value of lifting spindle(Z)||40|

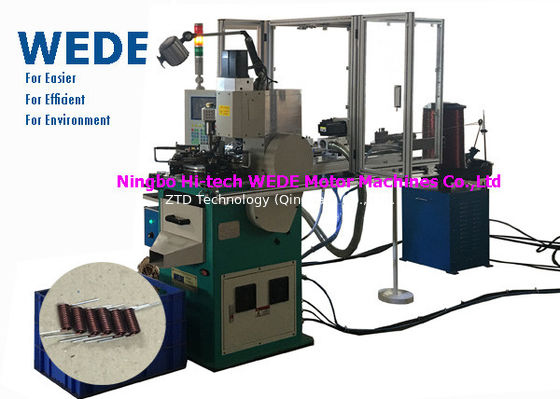

coils winding machine WD-1V-MCW can combine with the ferrite core assembly device to process the core coil, the ferrite core feeding is by vibrator and railway, the wire feeding is with recoiler.
Also same series WD-1V-MCW coils winding machine other model are for option.
